2016 Makino A51NX
| Year | 2016 |
| Brand | Makino |
| Model | A51NX |
| Description | CNC Horizontal Machining Center |
| Reference # | UDMM0003 |

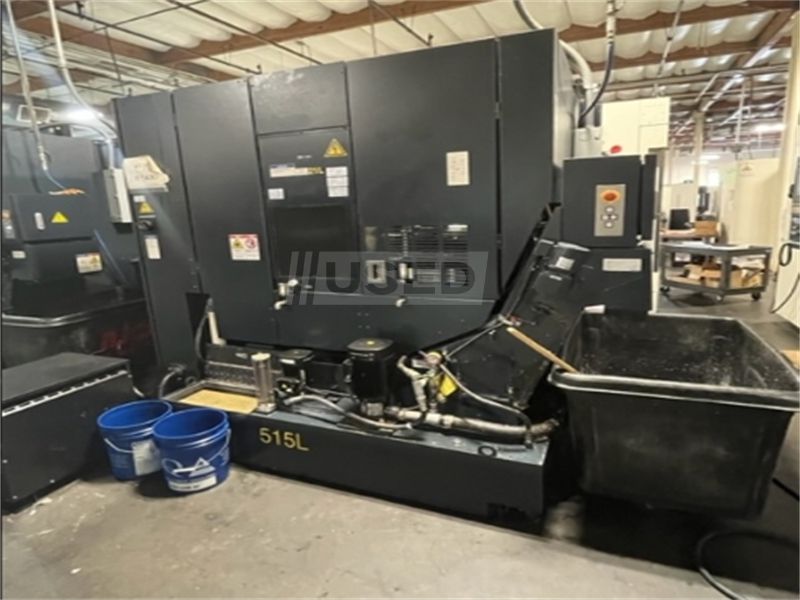

| Used Makino A51NX (2016) CNC Horizontal Machining Center for Sale. This pre-owned Makino CNC horizontal mill is located in China and available to be seen under power for an inspection. If you have any questions regarding this Makino Horizontal Machining Center, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button. | |
| SPECIFICATIONS | |
| X-Axis Travel | 560 mm |
| Y-Axis Travel | 560 mm |
| Z-Axis Travel | 640 mm |
| Pallet Size | 400 x 400 mm |
| Tool Magazine Capacity | 60 ATC |
| Spindle Speed | 14,000 RPM |
| Spindle Taper | CAT 40 |
| Control | Fanuc Pro 6 |
| Pallet Indexing | Full 4th Axis |
| Spindle Motor | 50 HP |
| Chip Removal | Chip Conveyor |
| Coolant | 220 PSI High Pressure Coolant Through Spindle |
