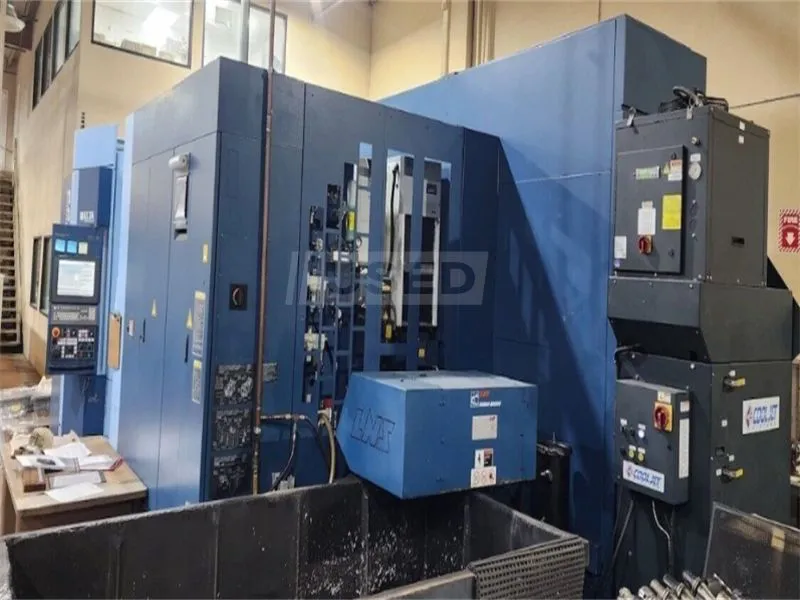

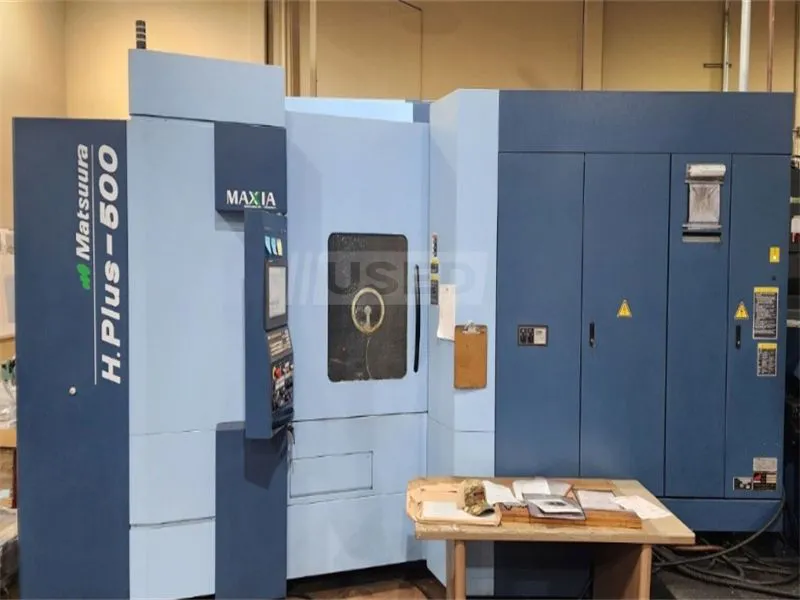

2015 Matsuura H.Plus-500 PC2
| Year | 2015 |
| Brand | Matsuura |
| Model | H.Plus-500 PC2 |
| Description | CNC Horizontal Machining Center |
| Reference # | UDMM0004 |
| Used Matsuura H.Plus-500 PC2 (2015) CNC Horizontal Machining Center for Sale. This pre-owned Matsuura CNC horizontal mill is located in China and available to be seen under power for an inspection. If you have any questions regarding this Matsuura Horizontal Machining Center, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button! | |
| SPECIFICATIONS | |
| X-Axis Travel | 800 mm |
| Y-Axis Travel | 800 mm |
| Z-Axis Travel | 800 mm |
| Pallet Size | 500 x 500 mm |
| Tool Magazine Capacity | 245 ATC |
| Spindle Speed | 15,000 RPM |
| Spindle Taper | CAT 50 |
| Control | Matsuura G-Tech 31i |
| Pallet Indexing | Full 4th Axis |
| Spindle Motor | / |
| Chip Removal | LNS Turbo MH-250 Chip Conveyor |
| Coolant | 1,000 PSI Through Spindle Coolant |
